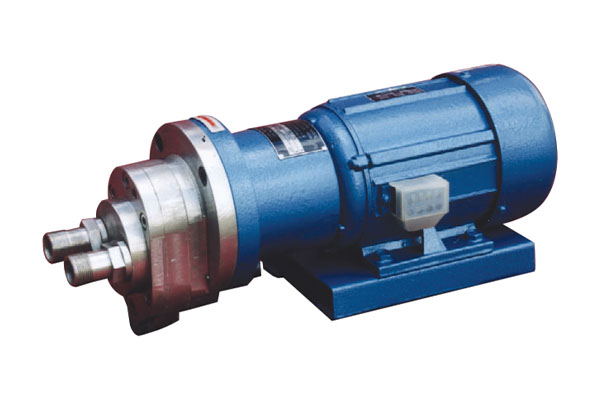

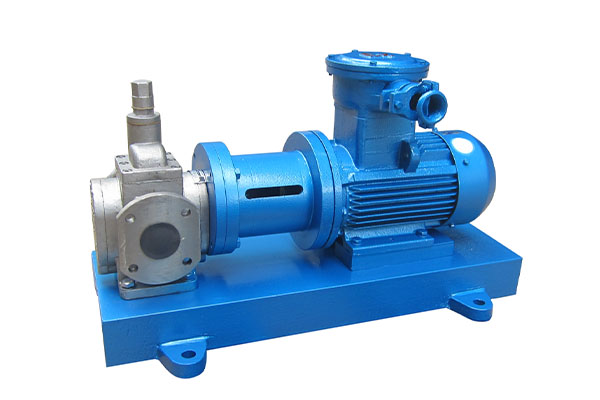

Metal Magnetic Gear Pump

CSH/CSL Type

Contact

Features
Technical Indicators
Overall Dimension

CSH type

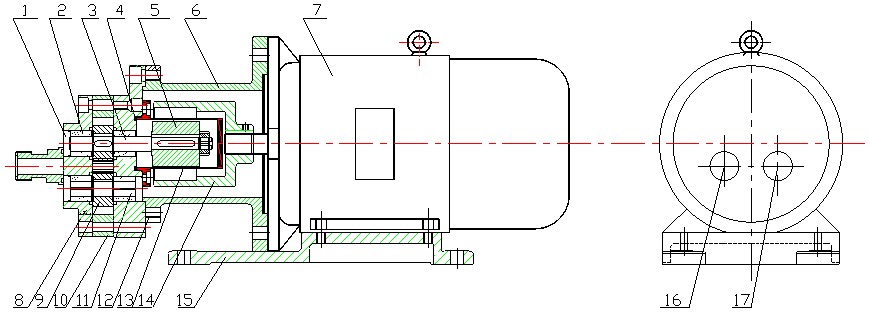

Drawing

CSL type

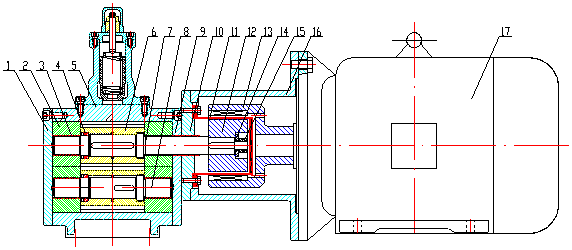

Drawing

Hastelloy isolated sleeve by stretch forming
CSH, CSL Metal Magnetic Gear Pump
1. Direct connection structure.
2. Stretched and welded Hastelloy isolation sleeve.
3. Tungsten carbide journal bearing.
CSL Type
model
flow capacity/lift capacity
Work Pressure
Suction vacuum height
Inlet and outlet diameter
efficiency
Speed
Motor power
m3/h
L/m
MPa
m
mm
%
r/min
kw
CSL 0.6/0.6
0.6
10
0.6
3
DN25
32
910
0.75
CSL 1.0/0.6
1
16.7
0.6
3
DN25
32
1390
0.75
CSL 1.6/0.6
1.6
26.7
0.6
3
DN32
42
910
0.75
CSL 2.5/0.6
2.5
42
0.6
3
DN32
42
1400
1.1
CSL 3.3/0.6
3.3
55
0.6
3
DN40
60
940
1.5
CSL 4/0.6
4
66
0.6
3
DN50
60
940
1.5
CSL 5/0.6
5
83.3
0.6
3
DN40
60
1420
2.2
CSL 6/0.6
6
100
0.6
3
DN50
60
1420
2.2
CSL 8/0.6
8
133
0.6
3
DN65
60
960
3
CSL 10/0.6
10
167
0.6
3
DN65
60
960
4
CSL 12/0.6
12
200
0.6
3
DN65
61
1440
5.5
CSL 15/0.6
15
250
0.6
3
DN65
61
1440
5.5
CSL 20/0.6
20
333
0.6
3
DN80
68
970
7.5
CSL 25/0.6
25
420
0.6
3
DN80
69
970
11
CSL 30/0.6
30
500
0.6
3
DN100
70
970
11
CSL 40/0.6
40
660
0.6
3
DN125
72
970
15

CSH Type
model
flow
pressure
Allowable suction height
Motor Model
power
Speed
Operating temperature (℃)
weight

（m3/h）
（Mpa）
（m）

（kw）
（r/min）
operating temperature
（kg）
type
flow rate
pressure
height permitted
motor type
power
rotational speed

weight
CSH-2
0.037
0.2
Self-priming 3
JW5614
0.09
1450
<50
15
self-priming 3
CSH-4
1
0.4
Self-priming 4
Y80
0.55
1400
<50
20
self-priming 4
CSH-6
3
0.6
Self-priming 4
Y90L
1.5
1400
<50
35
self-priming 4

Get the latest price? We will respond as soon as possible (within 12 hours)

model	flow capacity/lift capacity		Work Pressure	Suction vacuum height	Inlet and outlet diameter	efficiency	Speed	Motor power
	flow capacity/lift capacity		Work Pressure	Suction vacuum height	Inlet and outlet diameter	efficiency	Speed	Motor power
	m3/h	L/m	MPa	m	mm	%	r/min	kw
CSL 0.6/0.6	0.6	10	0.6	3	DN25	32	910	0.75
CSL 1.0/0.6	1	16.7	0.6	3	DN25	32	1390	0.75
CSL 1.6/0.6	1.6	26.7	0.6	3	DN32	42	910	0.75
CSL 2.5/0.6	2.5	42	0.6	3	DN32	42	1400	1.1
CSL 3.3/0.6	3.3	55	0.6	3	DN40	60	940	1.5
CSL 4/0.6	4	66	0.6	3	DN50	60	940	1.5
CSL 5/0.6	5	83.3	0.6	3	DN40	60	1420	2.2
CSL 6/0.6	6	100	0.6	3	DN50	60	1420	2.2
CSL 8/0.6	8	133	0.6	3	DN65	60	960	3
CSL 10/0.6	10	167	0.6	3	DN65	60	960	4
CSL 12/0.6	12	200	0.6	3	DN65	61	1440	5.5
CSL 15/0.6	15	250	0.6	3	DN65	61	1440	5.5
CSL 20/0.6	20	333	0.6	3	DN80	68	970	7.5
CSL 25/0.6	25	420	0.6	3	DN80	69	970	11
CSL 30/0.6	30	500	0.6	3	DN100	70	970	11
CSL 40/0.6	40	660	0.6	3	DN125	72	970	15

model	flow	pressure	Allowable suction height	Motor Model	power	Speed	Operating temperature (℃)	weight
	（m3/h）	（Mpa）	（m）		（kw）	（r/min）	operating temperature	（kg）
type	flow rate	pressure	height permitted	motor type	power	rotational speed		weight
CSH-2	0.037	0.2	Self-priming 3	JW5614	0.09	1450	<50	15
			self-priming 3
CSH-4	1	0.4	Self-priming 4	Y80	0.55	1400	<50	20
			self-priming 4
CSH-6	3	0.6	Self-priming 4	Y90L	1.5	1400	<50	35
			self-priming 4
