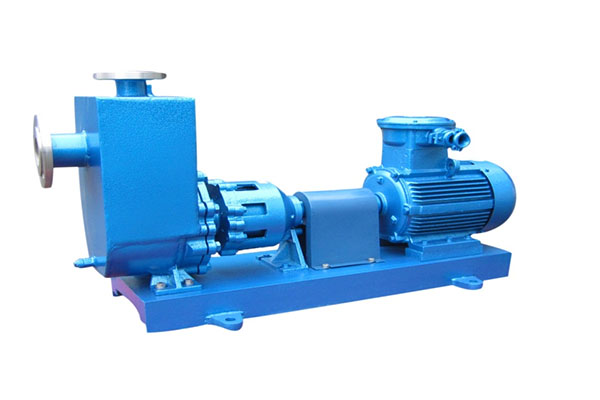

IMC Metal Magnetic Centrifugal Pump (Jacketed, Self-Priming)

IMC Type
IMC metal magnetic centrifugal pump (self-priming, heat preservation)
1. Double-cover plate and double support structure.
2. Impeller flow channel grinding and polishing.
3. Stretched and welded Hastelloy isolation sleeve and carbon fiber filament reinforced PEEK isolation sleeve.
4. Tungsten carbide journal bearing.

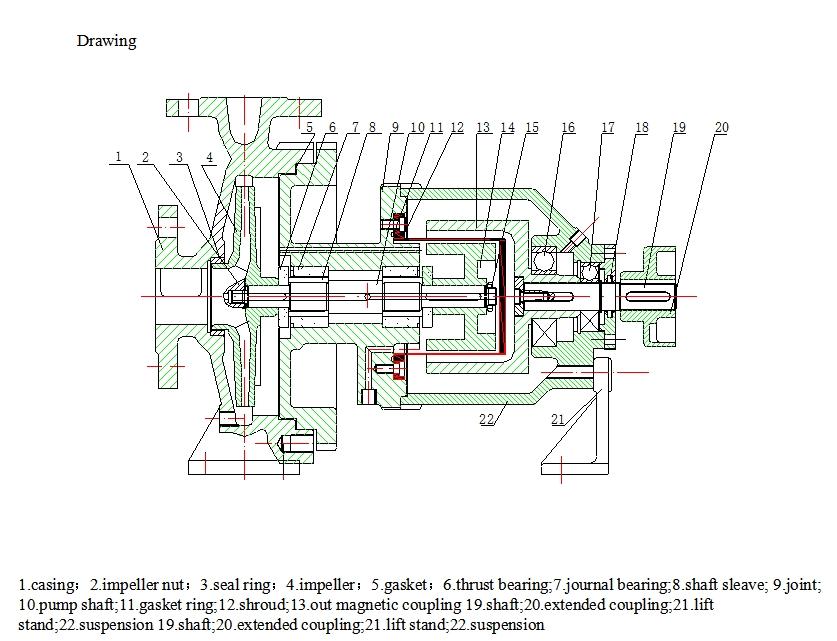

Drawing

Hastelloy isolated sleeve by stretch forming

PEEK isolation sleeve


Performance:
Flow Capacity: 1-400m³/h
Lift Capacity: 5-130 meters.
The metal magnetic pumps have an operating tempreture of up to 400°C.
