IMC Plastic Magnetic Centrifugal Pump (Jacketed, Self-Priming)
IMC/IMCX Type-
IMC plastic magnetic centrifugal pump (self-priming, heat preservation)
1. Double-cover plate and double support structure.
2. Carbon steel pump casing. The inner wall of the joint is steel lined with fluoroplastic.
3. Carbon fiber filament reinforced fluoroplastics, PEEK isolation sleeve.
4. Silicon carbide journal bearing.

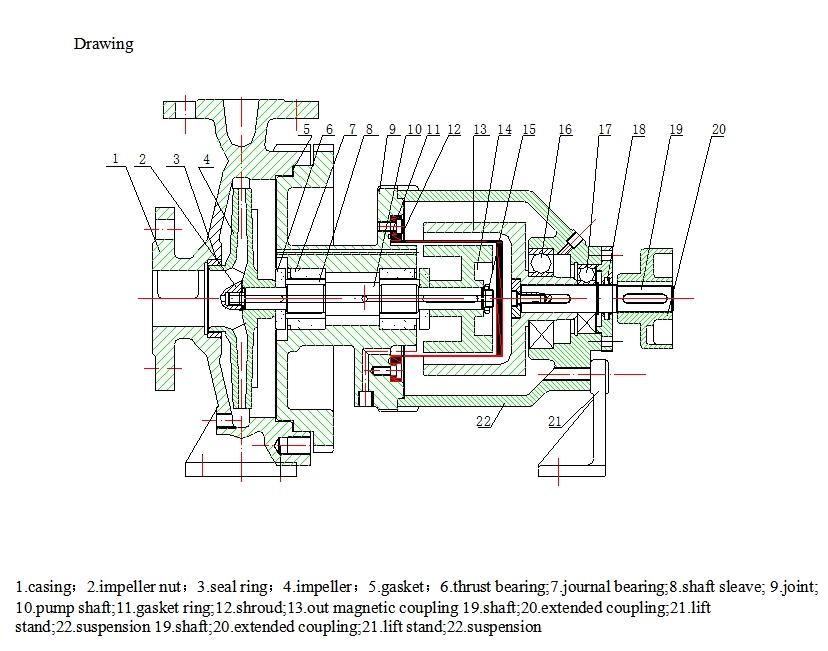

Drawing
PEEK isolation sleeve
-
Performance：
Flow Capacity: 1-200m³/h
Lift Capacity: 5-90 meters.
The plastic magnetic pumps have an operating tempreture of up to 220°C.
-
