IMC Plastic Double Leakage Protection Magnetic Centrifugal Pump (Jacketed, Self-Priming)

IMC/IMCX Type
IMC plastic magnetic driving centrifugal pump with anti-leakage double protection
1.Double-cover plate and double support structure.
2.Carbon steel pump casing. The inner wall of the joint is steel lined with fluoroplastic.
3.Carbon fiber filament reinforced fluoroplastics, PEEK isolation sleeve.
4.Silicon carbide journal bearing.
5.Anti-leakage double protection device.

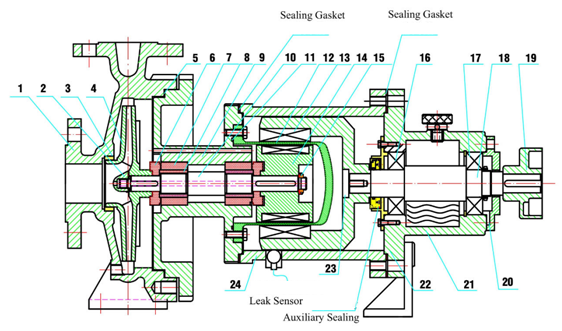

Structure of Double-Cover Plate

Drawing

Performance:
Flow Capacity: 1-200m³/h
Lift Capacity: 5-90 meters.

The plastic magnetic pumps have an operating tempreture of up to 220°C.
