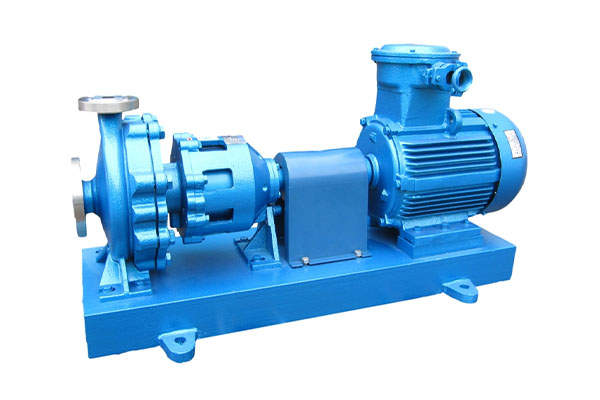

IMC Metal Magnetic Split Flow Pump (Jacketed, Self-Priming)
IMC Type-
IMC metal magnetic pump with separated flow (self-priming, heat preservation)
1. Double-cover plate and double support structure.
2. Impeller flow channel grinding and polishing.
3. Stretched and welded Hastelloy isolation sleeve and carbon fiber filament reinforced PEEK isolation sleeve.
4. Tungsten carbide journal bearing.

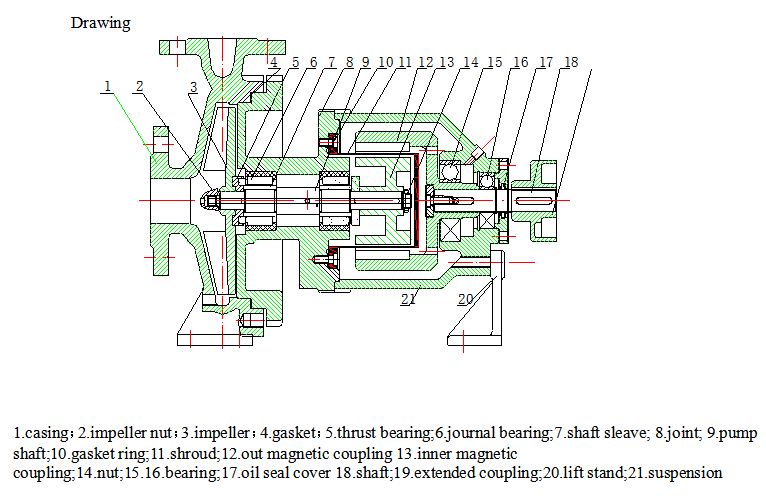

Drawing
Hastelloy isolated sleeve by stretch forming
PEEK isolation sleeve
-
Performance:
Flow capacity: 1.5 – 6m³/h
Lift capacty: 15 – 165 mParameter
Flow
Lift
Speed
Shaft Power
Efficiency
Cavitation Allowance
Equipped motor model power (power) KW
Unit
Q
H
n
Pa
η
NPSH
Model
m3/h
m
r/min
KW
%
Conveying medium density (density) g/cm3
Total Weight
1
1.35
1.85
Kg
IMC25-20-110L
3
18
2900
0.57
26
2
Y YB802-2
Y YB802-2
Y YB802-2
76
1.1
1.1
1.1
IMC32-25-125L
6
22
2900
0.7
40
3.5
Y YB90S-2
Y YB90S-2
Y YB90S-2
76
1.5
1.5
1.5
IMC40-32-150L
1.5
30
2900
0.64
25
3.5
Y YB100L-2
Y YB100L-2
Y YB100L-2
165
3
3
3
IMC40-32-180L
3
50
2900
1.7
25
3.5
Y YB112M-2
Y YB112M-2
Y YB112M-2
183
4
4
4
IMC40-32-220L
4
90
2900
4.9
20
4
Y YB132S2-2
Y YB132S2-2
Y YB160M1-2
220
7.5
7.5
11
IMC40-32-250L
4
110
2900
6.7
18
4
Y YB132S2-2
Y YB160M1-2
Y YB160M2-2
315
7.5
11
15
IMC40-32-315L
4
165
2900
16.8
9
4
Y YB200L1-2
Y YB200L2-2
Y YB225M-2
440
30
37
45
-
